Deep Space Communication Technology

- Overview

Deep space communication technology is a collection of technologies that allow for communication with spacecraft beyond Earth's atmosphere. These technologies include radio waves and laser beams.

Radio wave technologies:

• Deep Space Network (DSN) ; A network of large antennas in the United States, Australia, and Spain that communicate with spacecraft using radio waves
• Power-efficient channel codes: Technologies that allow for reliable transmission of data from deep space to Earth
• Low-density parity-check (LDPC) codes: Technologies that allow for data rates above 1 Gb/s
• Turbo codes: Technologies that can operate on channels with noise power that's more than five times higher than the signal power

Laser beam technologies:

• Deep Space Optical Communications (DSOC): A NASA system that uses laser beams to communicate with spacecraft
• Optical Communication Telescope Laboratory (OCTL): A laboratory at NASA's Table Mountain Facility that uses a laser to transmit low-rate data to spacecraft
• Superconducting nanowire photon-counting receiver: A receiver developed by JPL that receives high-rate data from spacecraft

- Deep Space Optical Communications

Deep Space Optical Communications (DSOC) is a laser space communication system in operation that improved communications performance 10 to 100 times over radio frequency technology without incurring increases in mass, volume or power. DSOC is capable of providing high bandwidth downlinks from beyond cislunar space.

DSOC is designed to improve the speed and reliability of communications with spacecraft. It allows for higher resolution images, larger volumes of data, and even streaming video.

NASA's DSOC experiment is the agency's first demonstration of optical communications beyond the Earth-Moon system. DSOC is a system that consists of a flight laser transceiver, a ground laser transmitter, and a ground laser receiver.

- Radio Wave Technology in Deep Space Communication

Radio wave technology in deep space communication refers to the use of radio waves, a type of electromagnetic radiation, to transmit data between spacecraft and Earth-based antennas, like NASA's Deep Space Network, allowing scientists to send commands and receive information from probes exploring distant parts of the solar system, all by utilizing the propagation of radio waves through space.

Key areas about radio wave technology in deep space communication:

• Transmission method: Radio waves are generated by antennas on Earth and directed towards the spacecraft, where they are received by dedicated antennas on the spacecraft.
• Signal encoding: Data is encoded onto the radio waves, which can then be decoded on Earth to retrieve the information.
• Frequency bands: Different frequency bands like S-band, X-band, and Ka-band are used depending on the desired data rate and distance.
• Deep Space Network (DSN): NASA primarily uses the DSN, a network of large antennas spread across the globe, to communicate with spacecraft in deep space.

Limitations of radio wave technology in deep space:

• Signal weakening: Radio waves weaken significantly over long distances, requiring powerful antennas and sensitive receivers.
• Data rate limitations: Compared to newer technologies like laser communication, radio waves can transmit data at lower rates.

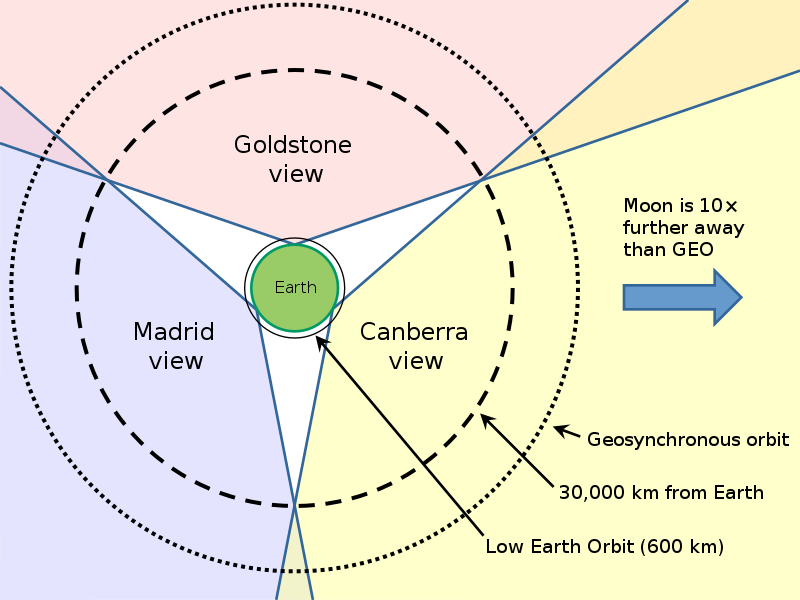

The Main DSN (Deep Space Network) Antenna Locations - Field of view of the Deep Space Network antennas, looking down from the North Pole. Illustrates that missions > 30,000 km from Earth are always in view of at least one station - NASA]

- Laser Beam Technology in Deep Space Communication

Laser beam technology in deep space communication refers to using focused beams of laser light to transmit data between spacecraft and Earth over vast distances, enabling significantly faster and higher-volume data transmission compared to traditional radio waves, often referred to as Deep Space Optical Communications (DSOC) by NASA.

Essentially, DSOC i's a method of sending information through space using modulated laser beams instead of radio signals, allowing for more data to be transmitted per unit time.

Key features about laser beam technology in deep space communication:

• High data rates: Laser beams can carry much more data than radio waves due to their shorter wavelengths, allowing for faster transmission of complex scientific information and high-resolution imagery.
• Precise pointing: Maintaining a stable laser beam on a distant target requires advanced pointing systems to ensure accurate signal reception.
• Infrared light: Most space laser communication systems utilize infrared light, which is less affected by atmospheric interference.
• NASA's DSOC experiment: NASA is actively testing laser communication technology in deep space through its "Deep Space Optical Communications" project, currently being demonstrated on the Psyche spacecraft traveling to an asteroid.

How it works:

• Laser transmitter: A laser on the spacecraft modulates the light beam with the data signal.
• Beam transmission: The modulated laser beam is directed towards Earth, where it is received by a specialized telescope equipped with a sensitive photon detector.
• Data decoding: The received laser signal is then decoded to retrieve the transmitted data.

Advantages of laser communication in space:

• Increased data throughput: Transmit significantly more data per second compared to radio communication.
• Smaller antennas: Laser communication systems can be smaller and lighter than radio antennas, making them suitable for smaller spacecraft.
• Improved signal quality: Laser beams are less susceptible to interference from other sources compared to radio waves.

Challenges of laser communication in space:

• Pointing accuracy: Maintaining a stable laser beam over long distances requires precise pointing mechanisms to counteract spacecraft movement.
• Atmospheric effects: Atmospheric conditions can affect laser signal quality when communicating with spacecraft in low Earth orbit.
• Power requirements: High-power lasers are needed to ensure sufficient signal strength at large distances.

[More to come ...]
