Mathematics for Artificial Neural Networks
- [Duke University]
- Overview
An artificial neural network (ANN) is a machine learning (ML) model that uses mathematical equations to process information and solve problems by mimicking the human brain:
- Structure: ANNs are made up of artificial neurons, or nodes, that are connected in layers to process information.
- Function: ANNs receive numerical information, process it, and pass it on to the next layer until it reaches the output layer, which produces a numerical result.
The first artificial neural circuit was modeled in 1943 by Warren McCulloch and Walker Pitts, but ANNs didn't become popular until the 1980s.
- Biological Neuron Model
A mathematical model of a neuron, also known as a biological neuron model or spiking neuron model, is a mathematical description of how electrical signals are conducted in neurons. Neurons, or nerve cells, are electrically excitable cells in the nervous system that can send electric signals, called action potentials, across a neural network.
Models of neural computation are abstract, mathematical attempts to explain the core principles that underlie information processing in biological nervous systems. A neural network is an abstract model made up of one or more layers that are connected in a specific way. The weighted connection between the layers acts as synapses, and each layer is made up of units that model neurons in the human brain.
The Morris–Lecar model (ML) is a mathematical model for spiking neurons that was proposed in 1981. It provides a second-order approximation of the HH model and describes the membrane voltage V and the recovery variable N.
- The Math behind Artificial Neural Networks
Artificial neural networks (ANNs) are based on a series of matrix operations, such as matrix-vector multiplication, matrix inversion, and dot product.
The mathematics used for ANNs includes: Linear algebra, Calculus, Probability, Statistics.
Training an ANN involves searching for the set of weights that best model the patterns in the data. This process uses the backpropagation and gradient descent algorithms, which both make extensive use of calculus.
Here are some other details about the math used for artificial neural networks:

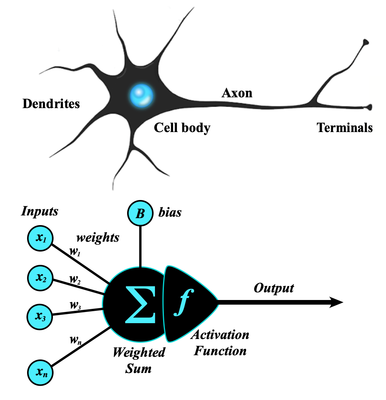

- Weights: Represent the strength of the connection between neurons. They decide how much influence the given input will have on the neuron's output.
- Neuron's activation: The neuron sums up all the values it receives through its connections to get the output. This neuron's activation is y = w * x + b, or as a formula y=wx+b.
- Backpropagation: The main goal in neural networks is to reduce the error. To do this, we have to update all the weights by doing backpropagation.
Artificial Neural Networks (ANNs) combine biological principles with advanced statistics to solve problems in areas such as pattern recognition and gameplay. ANNs employ a basic model of neuron analogs that are interconnected in multiple ways.
Today, with the help of open source machine learning (ML) software libraries such as TensorFlow, Keras or PyTorch, we can create a neural network with very high structural complexity in just a few lines of code.
Having said that, the math behind neural networks is still a mystery to some of us, and having knowledge of the math behind neural networks and deep learning can help us understand what's going on inside neural networks. It also helps with architecture selection, fine-tuning of deep learning models, hyperparameter tuning and optimization.
Please refer to the following for more information:
- Perceptron Neural Network
Perceptron is a single layer neural network and a multi-layer perceptron is called Neural Networks. Perceptron is a linear classifier (binary). Also, it is used in supervised learning. It helps to classify the given input data.
A perceptron neural network is a single-layer neural network that performs computations to detect features in input data. It is a fundamental unit of an artificial neural network that takes multiple inputs and outputs a single binary decision.
Here are some characteristics of a perceptron neural network:
- It is a linear classifier because its decision boundary is given by a hyperplane.
- It is a machine learning algorithm used for supervised learning of various binary classifiers.
- It is a simple yet effective algorithm that can learn from labeled data to perform classification and pattern recognition tasks.
- It is arguably the oldest and most simple of the ANN algorithms.
A perceptron network consists of a single layer of S perceptron neurons connected to R inputs through a set of weights wi,j. The network indices i and j indicate that wi,j is the strength of the connection from the jth input to the ith neuron.
[More to come ...]
