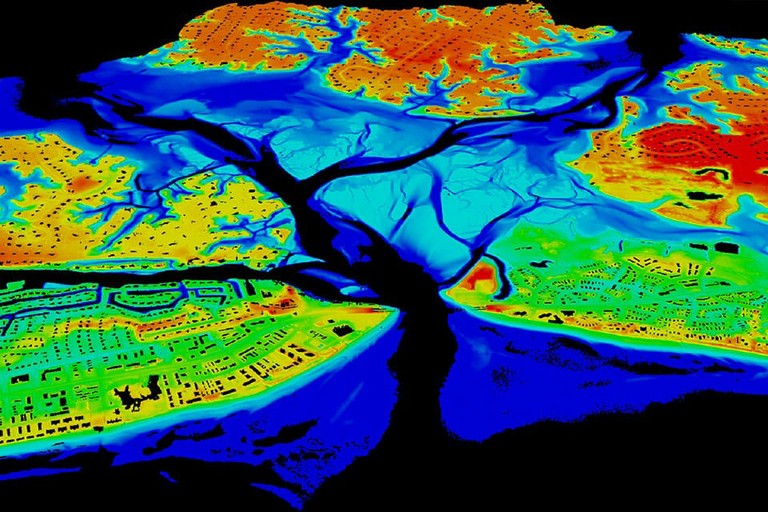

[A lidar map of Lynnhaven Inlet, Virginia - NOAA]


- Overview

Light Detection and Ranging (LiDAR) is a remote sensing technology that uses lasers to measure distances and create 3D models of the Earth's surface. LiDAR is used in many fields, including construction, agriculture, and transportation.

A LiDAR sensor comprises four main parts: the laser, the scanner, the detector, and the processing unit.

A LiDAR instrument emits pulses of light from a laser scanner. The light reflects off the surface and returns to the scanner. The scanner measures how long it took for the light to return. The distance between the scanner and the surface is calculated from the travel time. The data is collected as a point cloud, which can be used to create 3D models.

Please refer to the following for more information:



- The Key Components of A LiDAR Instrument

A LiDAR instrument primarily consists of a laser source, a scanner to deflect the laser beam, and a detector to collect the reflected light, with additional components like optical lenses and a processing unit to interpret the data; often, a Global Positioning System (GPS) is also integrated to accurately georeference the collected data.

Key components of a LiDAR instrument:

  • Laser: Emits pulsed laser beams to illuminate the target area.
  • Scanner: A rotating or oscillating mirror that directs the laser beam across the scene.
  • Detector: Receives the reflected laser pulses and converts them into electrical signals.
  • Timing electronics: Precisely measures the time it takes for the laser pulse to travel to the target and back.
  • GPS receiver: Provides the geographical location of the LiDAR sensor.
  • IMU (Inertial Measurement Unit): Measures the sensor's orientation and movement, crucial for accurate data collection.



- How Does LiDAR Work?

LiDAR is interesting because it allows for incredibly precise 3D mapping of environments by using laser pulses to measure distances, providing detailed information about terrain, objects, and even vegetation, making it valuable for applications like autonomous vehicles, archaeology, forestry, and environmental monitoring, all while being able to work in various lighting conditions, including low light situations; essentially acting like a "high-tech detective" to accurately scan and understand complex surroundings.

  • Laser: A laser is a light source used to measure the distance between the sensor and an object. It is responsible for emitting pulses of light at a very high frequency. The lasers used in LiDAR sensors can be solid-state lasers or gas lasers.
  • Scanner: The scanner is responsible for directing the laser beam in different directions. It rotates or oscillates to scan the environment and collect data. This allows the sensor to create a 3D point cloud of the environment by measuring the distance to different objects in the scene.
  • Detector: The detector is responsible for receiving the light reflected back from the objects in the scene. It converts the light into an electrical signal that can be processed and analyzed. The detector can be a photodiode or a photomultiplier tube.
  • Processing unit: The processing unit is responsible for analyzing the data collected by the sensor. It processes the electrical signals from the detector and converts them into usable information. The processing unit can include a microcontroller, a computer, or a dedicated ASIC (Application Specific Integrated Circuit).



Each of these parts plays a critical role in the sensor's ability to accurately measure the distance to objects and create detailed 3D models of the environment.



- Key Characteristics about LiDAR

Key characteristics about LiDAR:

  • High Accuracy: LiDAR can capture extremely precise measurements, creating detailed 3D models with a high level of resolution.
  • Versatility: It can be used in various environments, from dense forests to urban areas, to map terrain, detect objects, and even measure atmospheric conditions.
  • Penetration Capability: Unlike other imaging technologies, LiDAR can penetrate through foliage, allowing for detailed mapping of forest canopies.
  • Autonomous Vehicle Applications: LiDAR plays a critical role in self-driving cars by providing real-time 3D perception of the surrounding environment, enabling obstacle detection and navigation.
  • Archaeological Discoveries: Archaeologists use LiDAR to map ancient ruins and hidden structures by detecting subtle changes in topography under vegetation cover.



- Applications of LiDAR

LiDAR is a remote sensing method that uses light in the form of pulsed laser light to measure range (variable distance) to Earth. These pulses of light are combined with other data recorded by onboard systems to generate precise three-dimensional information about the shape of the Earth and its surface features.

LiDAR is used in many fields, including transportation, agriculture, environment, construction, autonomous vehicle, and security operation.

  • Transportation: LiDAR is used to map roads, signs, and other infrastructure to help with navigation, emergency response, and transportation planning.
  • Agriculture: LiDAR is used to map vegetation height and density to help with crop scouting, yield rate analysis, and land management.
  • Environment: LiDAR is used to map flood risk, coastal erosion, and carbon stocks in forests.
  • Construction: LiDAR is used to track building projects, create digital twins, and map the built environment.
  • Autonomous vehicles: LiDAR is used to create detailed 3D maps of the surrounding area in real-time.
  • LiDAR is also used in archaeology, mining, and security operations.



[More to come ...]
