Radio Spectrum, Signal Processing, and Beamforming

Signal Processing_Wikipedia_101821A
[Signal Processing, Wikipedia]


- Overview

Radio waves are generated artificially by an electronic device called a transmitter, which is connected to an antenna, which radiates the waves. They are received by another antenna connected to a radio receiver, which processes the received signal.

Radio spectrum is the range of electromagnetic frequencies available for wireless communication. Signal processing is the manipulation of signals, including radio waves, to extract information or improve quality. Beamforming is a signal processing technique that directs radio waves towards specific locations by strategically combining signals from multiple antennas.

A. Radio Spectrum:

  • The radio spectrum is a valuable resource for wireless communication, encompassing a wide range of frequencies from 3 kHz to 300 GHz.
  • Efficient use and management of the radio spectrum are crucial to accommodate the increasing demand for wireless services like mobile phones, internet, and broadcasting.
  • Regulations and spectrum allocation by governing bodies ensure that different services have dedicated frequencies and prevent interference.


B. Signal Processing:

  • Signal processing involves various techniques to analyze, modify, and enhance radio signals.
  • This includes techniques like filtering to remove unwanted noise, modulation to encode information onto the signal, and demodulation to extract the information at the receiver.
  • Signal processing plays a crucial role in improving the reliability and performance of wireless communication systems.


C. Beamforming:

  • Beamforming is a signal processing technique that uses an array of antennas to concentrate radio waves in a specific direction.
  • By strategically combining signals from different antennas, beamforming creates a directional beam, improving signal strength and reducing interference.
  • Beamforming is widely used in applications like radar, sonar, wireless communication, and radio astronomy.
  • It can be used for both transmitting and receiving signals, allowing for focused communication or signal reception.
  • Advantages of beamforming include improved signal strength, reduced interference, and enhanced spatial selectivity.
  • Beamforming is particularly important in technologies like 5G and Wi-Fi, where high data rates and efficient use of the radio spectrum are essential.


- 5G Spectrum Bands

5G technology utilizes three main frequency bands: low-band (below 1 GHz), mid-band (1 GHz to 6 GHz), and high-band (also known as millimeter wave, 24 GHz and above). These bands offer different trade-offs between coverage, capacity, and speed.

5G uses a mix of these bands to optimize coverage, capacity, and speed, with low-band for wide area coverage, mid-band for a good balance, and high-band for the fastest speeds in dense areas.

Low-band 5G:

  • Operates at frequencies below 1 GHz, typically 600 MHz to 1 GHz.
  • Provides the widest coverage area due to its ability to penetrate buildings and travel long distances.
  • Offers lower speeds compared to mid-band and high-band 5G.


Mid-band 5G:

  • Operates in the 1 GHz to 6 GHz range.
  • Offers a balance between coverage and speed, delivering higher speeds than low-band 5G.
  • Includes bands like 3.3-3.8 GHz, which are widely used for 5G in many countries.


High-band 5G (mmWave):

  • Operates in the 24 GHz to 39 GHz range.
  • Provides the highest potential speeds but with the smallest coverage area, making it suitable for densely populated areas.
  • Requires more infrastructure, including small cells, to maintain coverage.



- Radio Wave Technology

Radio is the technology of signaling and communicating using radio waves. Radio waves are electromagnetic waves of frequency between 30 hertz (Hz) and 300 gigahertz (GHz). They are generated by an electronic device called a transmitter connected to an antenna which radiates the waves, and received by another antenna connected to a radio receiver. Radio is very widely used in modern technology, in radio communication, radar, radio navigation, remote control, remote sensing, and other applications.

Radio waves can travel long distances and can penetrate buildings. Radio waves have omnidirectional antennas, i.e. antennas that can send signals in all directions. The properties of radios waves vary according to their frequencies. However, radio waves at all frequencies are prone to interference from electrical equipments like motors etc.

Low and medium frequency radio waves can pass through obstacles and have ground propagation. However, the power diminishes rapidly depending upon the distance from the source. This attenuation in power is called the path loss. High frequency radio waves travel in straight lines and have sky propagation. However, they are affected by interferences and are affected by rains. The military communicates in the HF and VHF bands. They are also used for long distance broadcasting and FM radio.



- Signal Processing

Signal processing is an electrical engineering subfield that focuses on analysing, modifying, and synthesizing signals such as sound, images, and scientific measurements. Signal processing techniques can be used to improve transmission, storage efficiency and subjective quality and to also emphasize or detect components of interest in a measured signal.

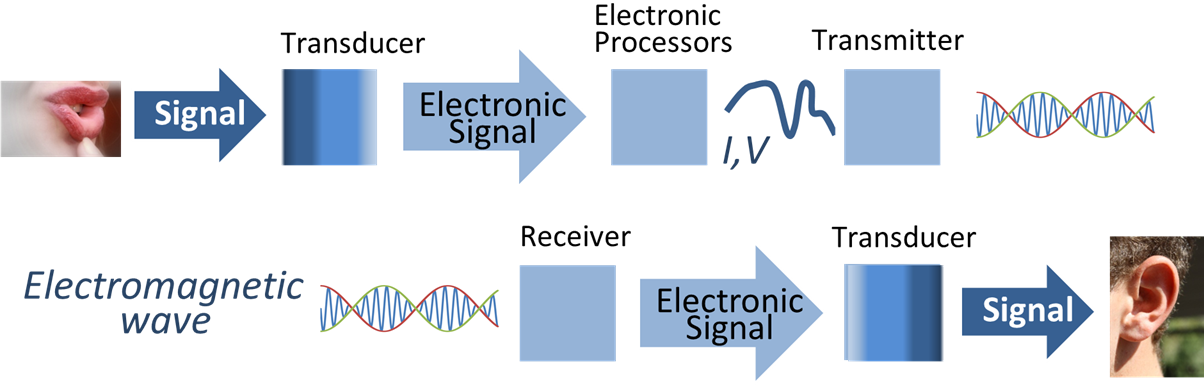

Signal transmission using electronic signal processing. Transducers convert signals from other physical waveforms to electric current or voltage waveforms, which then are processed, transmitted as electromagnetic waves, received and converted by another transducer to final form.

Connectivity in recent wireless communication is accessible anywhere because of the large footprints of both cellular and Wi-Fi networks. Yet, the broadcasting in wireless technology increases the susceptibility of signals to contemporary challenges such as interference, fading, and distortion. In addition, the energy of signals is lost because of Doppler effects and scattering caused by the obstacles in the channel.



- Beamforming

Beamforming is a signal processing technique that enhances the performance of wireless communication systems. It involves directing the transmission or reception of radio waves in a specific direction, rather than broadcasting signals in all directions equally.

The beamforming is achieved via new signal processing methods. These methods involve the processing of multi-user digital signals via the special new silicon chip. The evolution of communications systems inherently relies on integrated microelectronic circuits.

Beamforming is a powerful technique which has been widely used in signal processing, radar and sonar, biomedical, and particularly in communications. Beamforming offers a significantly improved solution to reduce the interference levels and improve the system capacity.

In applications of beamforming in communications systems, the basic idea is to optimally process signals received over different antennas, or the signals which are to be transmitted over different paths, by adjusting the signal amplitudes and phases, to form a strong beam toward the direction of interest, and at the same time, to avoid receiving or creating interference.

Both receive beamforming and transmit beamforming have been extensively studied in the literature leading to numerous innovative and interesting beamforming schemes.




[More to come ...]
